I've just been having a look at NASA's "CAPSTONE" mission:
  • Pathfinder for Artemis
  • Going to Lunar NRHO
  • Launched on Rocketlab's "Electron", multiple Apogee raising burns from LEO
  • Ballistic trajectory to Lunar NRHO via Earth-Sun L1 area.

Quite a navigation challenge for Orbiter!

We already have Crisbeta's "Electron" add-on:

Some CAPSTONE infos:

Electron pdf:

Youtube vid:


kalral

New member
Joined
Nov 22, 2020
Messages
27
Reaction score
14
Points
3
Location
Germany
@BrianJ That is indeed a quite challenging project, I wish you good luck. I heard someone did it using Principia in KSP, few months before, but I am not sure about the NRHO part. I am quite interested to see your methodology of using IMFD for this task.

Last edited:

BrianJ

Addon Developer
Addon Developer
Joined
Apr 19, 2008
Messages
1,550
Reaction score
700
Points
128
Location
Code 347
@BrianJ That is indeed a quite challenging project, I wish you good luck. I heard someone did it using Principia in KSP, few months before, but I am not sure about the NRHO part. I am quite interested to see your methodology of using IMFD for this task.
I hope I have the time to give it a try! The question is, as ever, "can the mission be replicated in Orbiter without NASA's sophisticated planning tools?" I wonder if GMAT might be useful? Otherwise IMFD Map and LagrangeMFD will probably be my choice of MFDs.

One thing that encourages me is that if one can get to the L1 area, then it requires only small dV to get on a useful trajectory (for Lunar intercept in this case).

Some more info about Capstone:

Cheers,
Brian


kuddel

Donator
Donator
Joined
Apr 1, 2008
Messages
1,946
Reaction score
432
Points
83
This is a really fascinating mission (trajectory-planning-and-using-suns-gravity-influence-wise). Why did I not yet know about this?
Thanks for bringing it up Brian!

...These are the moments I thank the universe for letting me know this forum :D


BrianJ

Addon Developer
Addon Developer
Joined
Apr 19, 2008
Messages
1,550
Reaction score
700
Points
128
Location
Code 347
Hi,
I've just been making a start on simulating the CAPSTONE launch in Orbiter.
Using crisbeta's "Electron" launcher add-on with an additional "Photon" 3rd stage.
The Electron can put the Photon+Capstone into 250km LEO, but from there another ~2500 m/s dV is required to get out to the Earth-Sun L1 area.
The only info I have about "Photon" stage is "50kg wet mass".
The couple of photos and diagrams I have seen indicate 4 x 0.5m diameter spheres for propellant (Hydrazine) storage.
That equates to ~30kg propellant (being generous), so 20kg dry mass, plus 27kg for Capstone.
If I use an ISP of 3200Ns/kg for the engine, that gives ~1600m/s dV capability - a shortfall of 900m/s dV.
I have to use 35kg propellant, 15kg dry mass, ISP 4200Ns/kg, to get the required 2500m/s dV.
This seems rather optimistic to me, but hey "what do I know!" ;-)

I just wondered if anyone has any thoughts or info about Rocket Lab's "Photon" stage?
Cheers,
Brian


cosmonaut2040

Member
Joined
Jul 13, 2008
Messages
32
Reaction score
16
Points
8
Hi Brian,

the "50kg wet mass" likely refers to the small "Photon LEO", as it is based on the "kick stage", which is 40 kg dry per the Payload user guide.

The "Photon interplanetary" version must be significantly heavier. Also, it is likely bipropellant.

Assuming 4 x 0.5m diameter tanks (= 0.262 m^3) and MMH+NTO propellants (ISP = 3347 m/s, average density 1190 kg/m^3 per wikipedia) one gets ~312 kg for the propellant.

The total mass is more than Electron can lift to LEO, so it will need to do more than just the 2500 m/s delta v. If I guess e.g. 1000 m/s extra to reach LEO, I get 169 kg for structure+payload which seems reasonable. It's Friday late and I'm quite tired so I don't guarantee that I didn't make some mistake in my calculation :)

Cheers



BrianJ

Addon Developer
Addon Developer
Joined
Apr 19, 2008
Messages
1,550
Reaction score
700
Points
128
Location
Code 347
Ah! Thanks so much :)
I'm only one decimal place out on my sphere volume calculations :rolleyes:
Those numbers make much more sense.
Cheers,
Brian


BrianJ

Addon Developer
Addon Developer
Joined
Apr 19, 2008
Messages
1,550
Reaction score
700
Points
128
Location
Code 347
Hi,
after testing in Orbiter, it seems that 481kg is more than the Electron can lift to anywhere near orbit.
This made me take another look at the diagram of the Photon stage and reassess the propellant sphere size, which I think I over-estimated.

[Off-topic]
This led me to wonder - what is the maximum size (radius r)for 4 equal spheres packed horizontally in a cylinder of radius R, and just touching the cylinder wall? A rough sketch helped me realise: r = R * sin(45deg) / (1 + sin(45deg))
And in fact, for n spheres, it generalises to: r = R * sin(Pi/n) / (1 + sin(Pi/n))
Although it doesn't work for n = 0 or 1
I don't know why my brain likes to think about these things, really.....
[/Off-topic]

The Electron is only 1.2m diameter, and leaving a bit of room for the fairing means the Photon stage is about 1m diameter.
So the propellant spheres must be ~ 0.2m radius max.

So at the moment, I have given the Photon stage 158kg propellant , ISP 3347Ns/kg , 55kg dry mass (+27kg for Capstone), and a 500N main engine.
Thats 240kg for fully fuelled Photon+Capstone, and leaves enough dV to get to Sun-Earth L1 after LEO insertion (provided you do multiple burns around perigee to keep the burn efficiency up).

I wonder if that's anywhere near reality?
Cheers,
Brian


cosmonaut2040

Member
Joined
Jul 13, 2008
Messages
32
Reaction score
16
Points
8
In the absence of actual data from Rocketlab, your numbers seem quite plausible. (y)

And the fact that you even derived an equation for the r gives your analysis extra credibility in my opinion :)

Cheers


Sbb1413

Add-on developer and tester
Joined
Aug 14, 2018
Messages
947
Reaction score
367
Points
78
Location
India
Preferred Pronouns
he/his/him
I have planned to create Gateway scenarios with the Gateway at NRHO. However, as simulating NRHO is itself challenging, I will wait for the CAPSTONE add-on to be released. Until then, I will use the LRO orbit for the Gateway.


BrianJ

Addon Developer
Addon Developer
Joined
Apr 19, 2008
Messages
1,550
Reaction score
700
Points
128
Location
Code 347
I have planned to create Gateway scenarios with the Gateway at NRHO. However, as simulating NRHO is itself challenging, I will wait for the CAPSTONE add-on to be released. Until then, I will use the LRO orbit for the Gateway.
Hi,
I thought it would not be so hard to set up a NRHO orbit using ScenarioEditor and LagrangeMFD, but I have had no success so far. The characteristics of Capstone NRHO being ~ an orbit of 1500km x 70000km alt, perilune over North Pole, orbital plane roughly perpendicular to Earth-Moon line. And importantly it maintains orbital plane relative to Earth-Moon line.
Using LagrangeMFD "rotating frame" display should show this clearly, I think.
But as I said, I have had no success so far.
Cheers,
Brian


BrianJ

Addon Developer
Addon Developer
Joined
Apr 19, 2008
Messages
1,550
Reaction score
700
Points
128
Location
Code 347
Hi,
I put my "Capstone" add-on package up on OHM:

Includes Capstone spacecraft, Photon 3rd stage for Electron, launch scenario from LC-1 Mahia, etc.

Maybe someone else will have more success setting up a NRHO in Orbiter - I have not been able to find anything that works.
The WSB transfer to the Moon from LEO is quite fun and challenging. I included a few screenshots from my last attempt in case it's useful to anyone.

Cheers,
Brian


BrianJ

Addon Developer
Addon Developer
Joined
Apr 19, 2008
Messages
1,550
Reaction score
700
Points
128
Location
Code 347

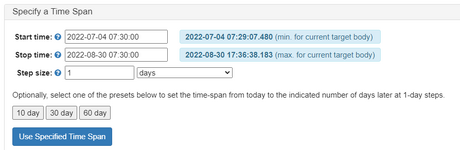

There's now a HORIZONS trajectory for CAPSTONE available! But kind of incomplete at the moment
Thanks! I'd really like to see the trajectory data post-LOI (13 Nov 2022?) to get a handle on the NRHO.
Cheers,
Brian


Gargantua2024

The Desktop Orbinaut
Joined
Oct 14, 2016
Messages
909
Reaction score
1,065
Points
108
Location
San Jose Del Monte, Bulacan

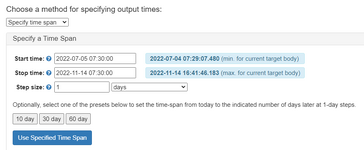

CAPSTONE's HORIZONS trajectory now extends to November 14th, a day after its scheduled lunar orbital insertion
It should be able to cover a portion of its near-rectilinear halo orbit around the Moon at this point


BrianJ

Addon Developer
Addon Developer
Joined
Apr 19, 2008
Messages
1,550
Reaction score
700
Points
128
Location
Code 347
Hi,
Horizons data up to 14 Dec now, so I grabbed the vectors for 14 Dec - Orbiter still shows Capstone in an unstable lunar orbit ~1700x90000km, but it doesn't even make it to the next periapsis before starting to escape. So I reckon it must make another burn for "NRHO" insertion some time after 14 Dec, maybe.
Here's my scenario for 14 Dec 00:00 UTC
Code:
BEGIN_DESC

END_DESC

BEGIN_ENVIRONMENT
  System Sol
  Date MJD  59927
END_ENVIRONMENT

BEGIN_FOCUS
  Ship CAPSTONE
END_FOCUS

BEGIN_CAMERA
  TARGET CAPSTONE
  MODE Extern
  POS 14.540860 -81.224667 50.622992
  TRACKMODE GlobalFrame
  FOV 50.00
END_CAMERA

BEGIN_HUD
  TYPE Orbit
  REF Earth
END_HUD

BEGIN_MFD Left

END_MFD

BEGIN_MFD Right
  TYPE Orbit
  PROJ Frame
  FRAME Ecliptic
  REF Moon
END_MFD

BEGIN_SHIPS
CAPSTONE:capstone\capstone
  STATUS Orbiting Moon
  RPOS -35408833.1341999 -49304325.9739514  10546736.8810199
  RVEL -38.6247449987071 -211.983459678939  78.1988597203457
  AROT 179.506 -51.883 90.328
  AFCMODE 7
  PRPLEVEL 0:0.998629
  NAVFREQ 0 0
  SOLP 2 1.0000
  AUTP 1 0
END
END_SHIPS

BEGIN_DX9ExtMFD
END

BEGIN_ExtMFD
END
A quick look at the orbit elements for 13 Nov (LOI date) show a burn at around 23:45 UTC to reduce lunar orbit eccentricity from ~0.96 to 0.93. Here's my scenario for 13 Nov 23:00 UTC.
Code:
BEGIN_DESC

END_DESC

BEGIN_ENVIRONMENT
  System Sol
  Date MJD  59896.958333333
END_ENVIRONMENT

BEGIN_FOCUS
  Ship CAPSTONE
END_FOCUS

BEGIN_CAMERA
  TARGET CAPSTONE
  MODE Extern
  POS 14.540860 -81.224667 50.622992
  TRACKMODE GlobalFrame
  FOV 50.00
END_CAMERA

BEGIN_HUD
  TYPE Orbit
  REF Earth
END_HUD

BEGIN_MFD Left

END_MFD

BEGIN_MFD Right
  TYPE Orbit
  PROJ Frame
  FRAME Ecliptic
  REF Moon
END_MFD

BEGIN_SHIPS
CAPSTONE:capstone\capstone
  STATUS Orbiting Moon
  RPOS  5883674.28252967  248931.356464805  2593534.68881761
  RVEL -719.878791326623  855.51549883104 -476.155096438183
  AROT 179.506 -51.883 90.328
  AFCMODE 7
  PRPLEVEL 0:0.998629
  NAVFREQ 0 0
  SOLP 2 1.0000
  AUTP 1 0
END
END_SHIPS

BEGIN_DX9ExtMFD
END

BEGIN_ExtMFD
END

Cheers,
BrianJ
