Space Shuttle Ultra 1.25 Revision B development

DaveS · Jun 27, 2010

Urwumpe said:
No, I would say not. I could even test things outside SSU, just with a MFD to talk to the DLL.

It would just need to be done first. Do you have a checklist or so about the initial HST?

No, only the Press Kit and Media Resource Kit:

http://www.jsc.nasa.gov/history/shuttle_pk/pk/Flight_035_STS-031R_Press_Kit.pdf

http://www.jsc.nasa.gov/history/shuttle_pk/mrk/FLIGHT_035-STS-031_MRK.pdf

SiameseCat · Jun 28, 2010

I just checked in an improved HUD version which simulates the shuttle HUD (and ignores Orbiter's default HUD). I also changed the Atlantis class to use the VESSEL3 base class, so it won't be compatible with Orbiter 2006 anymore.

DaveS · Jun 29, 2010

SiameseCat said:
I just checked in an improved HUD version which simulates the shuttle HUD (and ignores Orbiter's default HUD). I also changed the Atlantis class to use the VESSEL3 base class, so it won't be compatible with Orbiter 2006 anymore.

I can't see this new HUD. All I get is the default HUD modes, with ALT and VEL printed at very edges of the screen.

SiameseCat · Jun 29, 2010

You need to be in the VC mode. For some reason, in glass cockpit mode the default HUD is still drawn on top of the SSU HUD.

---------- Post added at 06:25 PM ---------- Previous post was at 06:15 PM ----------

Also, make sure you're in MM304; other wise the default HUD will be displayed. Both the default landing scenarios should work.

DaveS · Jun 29, 2010

SiameseCat said:
You need to be in the VC mode. For some reason, in glass cockpit mode the default HUD is still drawn on top of the SSU HUD.

---------- Post added at 06:25 PM ---------- Previous post was at 06:15 PM ----------

Also, make sure you're in MM304; other wise the default HUD will be displayed. Both the default landing scenarios should work.

OK, that worked. But you should file a bug report so that it can be fixed in the upcoming patch. Is there any way to incorporate landing guidance in the new HUD? Or will it just clutter up the very tiny space we have on that tiny HUD glass?

SiameseCat · Jun 29, 2010

HUD issue is a known bug (http://www.orbiter-forum.com/project.php?issueid=417).
It's possible to display landing guidance (I have some code which already does that for final approach). The main issues here are computing the guidance and designating the landing site. Designating the landing site would require a new CRT MFD display and new GPC code; I'm not sure if this is worth the effort until we have a more stable GPC simulation.

DaveS · Jul 3, 2010

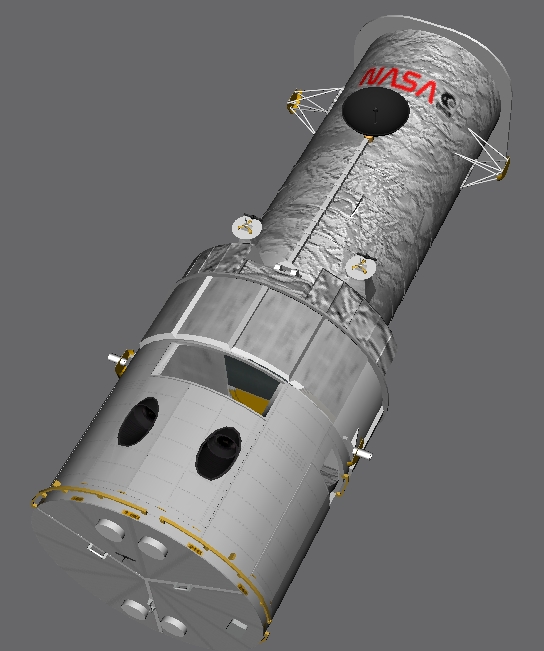

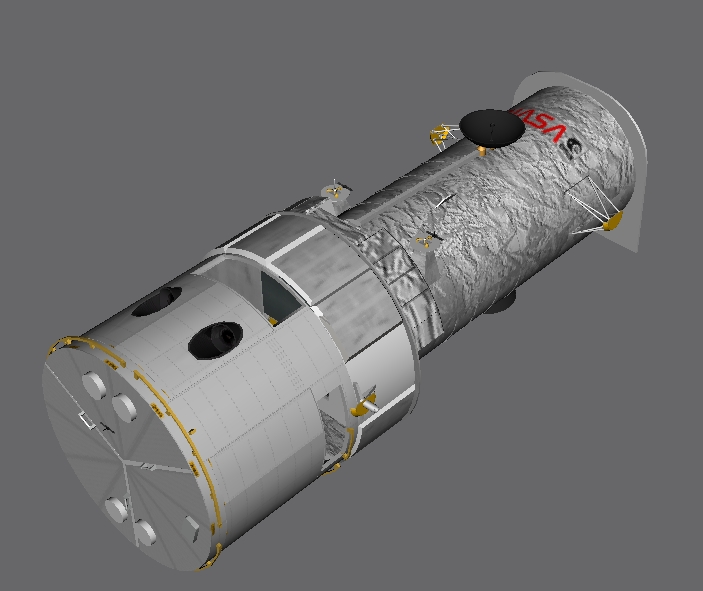

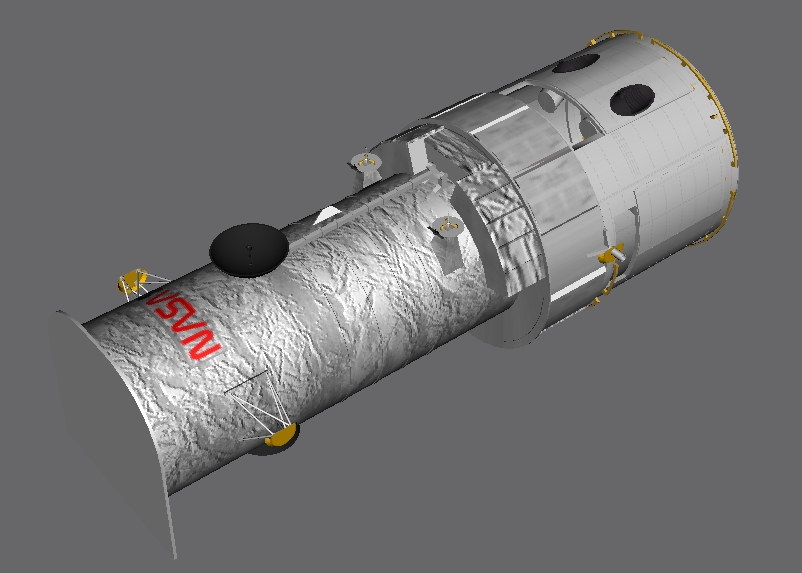

HST is coming along nicely. So, who wants to code it once the mesh/textures are done and checked in?

Urwumpe · Jul 3, 2010

DaveS said:
HST is coming along nicely. So, who wants to code it once the mesh/textures are done and checked in?

Does SiameseCat need more time for the Crawler? I could do it, I just need to do it along side the Mercury stuff. Currently learn to do some fun stuff with Lua scripts in Vessels, like defining subsystems by a special Lua script.

DaveS · Jul 3, 2010

Found this little section on the HST/STS interface:

2.6.3 STS Interface Description

The orbiter provides the capability to relay commands to and TLM from the HST.
During both the deploy and maintenance missions, STOCC command messages are
transmitted to the JSC Mission Control Center (MCC), which interleaves the message
into the orbiter S-band or Ku-band operational forward link. Once received by the
orbiter system, the command message is processed through the systems management
GPC and the orbiter payload communications system and is retransmitted to the HST
via its LGAs in a manner resembling the GSTDN uplink mode of the HST MA
transponders. The command message is then processed further, as described in
Section 2.5.4.

2.6.3.1 Orbiter Processing of HST Commanding

The orbiter systems management GPC issues each serial digital command message
through the PSP/PI. A PSP transaction may contain up to sixty-four 16-bit command
words per message, and the GPC supersedes each message with a PSP configuration
message of five 16-bit words in length. This configuration message programs the PSP
to output the subsequent HST command data words in the transaction in a specified
manner via a specified route. For HST, the PSP output is RF only and has the following
characteristics per the PSP configuration message:
PSP command rate 1 kbps
PSP command data type NRZ-L
PSP subcarrier idle pattern Yes
Once the HST MA receiver has acquired the forward link carrier from the PI, the PSP
subcarrier idle pattern will be enabled to allow the HST to remain locked onto the PI
forward link. The PI will be configured to transmit at a nominal carrier frequency of
2106.4 MHz (channel 701).

2.6.3.2 Orbiter Relay of HST Telemetry

The HST return link is acquired by the orbiter PI, which receives the HST return link on
a nominal carrier frequency of 2287.5 Mhz (channel 701). From the PI, HST telemetry
is transmitted to the STOCC via orbiter S-band or Ku-band communication systems.
Data relayed via the S-band system are routed around the PSP (PSP-bypass
configuration) to the HST PGSC, then to the PDI for supporting 0.5, 4, and 32k
telemetry. See Figure 2.6-13 for PSP-bypass configuration. The PDI synchronizes
data to the data stream and buffer to allow the orbiter system to interleave the HST TLM
into the orbiter operational downlink. Once received at the MCC, the HST stream is stripped from the orbiter data and redistributed to the STOCC over the NASCOM network.

When available, the Ku-band wideband data system may be configured to relay the
HST return link to the TDRSS through the orbiter. The Ku-band system is used
primarily for downlinking 1024k HST telemetry and as a backup to the S-band
communication system for 0.5, 4, and 32k telemetry.
The nominal HST forward and return link carrier frequencies coincide with those of the
orbiter high-frequency mode. For this reason, the orbiter communications system must
be configured to low frequency during servicing missions.

---------- Post added at 08:06 PM ---------- Previous post was at 06:18 PM ----------

Could someone post how to attach a payload to the bay so that you have to operate the A6 PL Retention Latch switches before you unberth a payload with the RMS?

SiameseCat · Jul 4, 2010

Here's a sample scenario showing the MPLM attached to the shuttle. The MPLM is attached to the LATCH1 subsystem (Payload 2 on the A6 panel).

Code:

BEGIN_DESC
Contains the latest simulation state.
END_DESC

BEGIN_ENVIRONMENT
  System Sol
  Date MJD 51982.0452360973
END_ENVIRONMENT

BEGIN_FOCUS
  Ship STS-101
END_FOCUS

BEGIN_CAMERA
  TARGET STS-101
  MODE Extern
  POS 1.85 -175.51 -5.73
  TRACKMODE TargetRelative
  FOV 40.00
END_CAMERA

BEGIN_HUD
  TYPE Docking
  NAV 0
END_HUD

BEGIN_MFD Left
  TYPE Docking
  NAV 0
END_MFD

BEGIN_MFD Right
  TYPE Map
  REF Earth
END_MFD

BEGIN_VC
END_VC

BEGIN_SHIPS
STS-101:SpaceShuttleUltra
  STATUS Orbiting Earth
  RPOS 1071525.57 -6450515.23 1614088.88
  RVEL -7457.974 -826.673 1683.323
  AROT 40.07 -27.10 87.81
  RCSMODE 2
  AFCMODE 7
  PRPLEVEL 0:0.986343 1:1.000000 2:1.000000 3:1.000000 4:1.000000 5:1.000000 6:0.821898 7:1.000000 8:1.000000 9:1.000000
  NAVFREQ 466 0
  CONFIGURATION 3
  ODS
  MET 1281.369707
  WING_NAME Atlantis
  GEAR 0 0.0000
  RMS
  OPS 201
  TGT_ID 2
  BODY_VECT 1
  ROLL 0.000000
  PITCH 0.000000
  YAW 0.000000
  P_ANGLE 0.000000
  Y_ANGLE 0.000000
  OM_ANGLE -1.000000
  DAP MODE 0 0
  ROT MODE 0 0 0
  TRANS MODE 0 0 0
  CONTROL MODE 1
   PAYLOAD CACTIVE1 8.000000 0.000000 0
   PAYLOAD CACTIVE2 0.000000 0.000000 0
   PAYLOAD CACTIVE3 -8.000000 0.000000 0
   PAYLOAD CPASSIVE1 4.000000 0.000000 0
   PAYLOAD CPASSIVE2 2.000000 0.000000 0
   PAYLOAD CPASSIVE3 -6.000000 0.000000 0
   PAYLOAD CPASSIVE4 7.000000 0.000000 0
   PAYLOAD PORT1 3.000000 0.000000 0
   PAYLOAD PORT2 -2.000000 0.000000 0
   PAYLOAD PORT3 -8.000000 0.000000 0
   PAYLOAD PORT4 7.000000 0.000000 0
   PAYLOAD STBD1 3.000000 0.000000 0
   PAYLOAD STBD2 -2.000000 0.000000 0
   PAYLOAD STBD3 -8.000000 0.000000 0
   PAYLOAD STBD4 0.000000 0.000000 0
  PLBD_CAM 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
