While this is of "Dragon V1.3" (as Musk called it), the landing is pretty much the same. The Dragon V2 probably will not perform a full propulsive landing for ISS missions, more likely a rocket-assisted like Soyuz. As the video shows.


Last edited:

Donamy

Addon Developer
Addon Developer
Donator
Beta Tester
Joined
Oct 16, 2007
Messages
6,904
Reaction score
196
Points
138
Location
Cape
Started texturing.


Attachments

  • WIP3.jpg
    42.7 KB · Views: 46

Urwumpe

Not funny anymore
Addon Developer
Donator
Joined
Feb 6, 2008
Messages
37,588
Reaction score
2,312
Points
203
Location
Wolfsburg
Preferred Pronouns
Sire
Started texturing.

Great, Looks almost like the presentation object now. Will it have an interior? :tiphat:

EDIT: OK, the umbilical connection to the trunk is missing:


Last edited:

Donamy

Addon Developer
Addon Developer
Donator
Beta Tester
Joined
Oct 16, 2007
Messages
6,904
Reaction score
196
Points
138
Location
Cape
It will have an interior, but it definitly looks like a mock-up. I wonder how different the real deal will be. I assume frames around the windows, bolted on TPS like the original dragon.


Attachments

  • WIP4.jpg
    43.5 KB · Views: 33

PhantomCruiser

Wanderer
Moderator
Tutorial Publisher
Joined
Jan 23, 2009
Messages
5,600
Reaction score
165
Points
153
Location
Cleveland
Hey Don. Take a look at the landing legs, the back two are closer together than the front two. Elon makes mention of it during the Q&A session after the reveal.

Last edited:

Urwumpe

Not funny anymore
Addon Developer
Donator
Joined
Feb 6, 2008
Messages
37,588
Reaction score
2,312
Points
203
Location
Wolfsburg
Preferred Pronouns
Sire
It will have an interior, but it definitly looks like a mock-up. I wonder how different the real deal will be. I assume frames around the windows, bolted on TPS like the original dragon.

I also assume that the umbilical connections will be covered by a hatch with heat shield, similar to the guidance sensors of the current Dragon, should the spacecraft be reusable.


kamaz

Unicorn hunter
Addon Developer
Joined
Mar 31, 2012
Messages
2,298
Reaction score
4
Points
0
GUI: http://i.imgur.com/75UM1R8.png (via r/space)

I see several problems with this, starting from the choice of colors (white on gray).

Maybe someone should send Elon a copy of Orbiter with Orb::Connect::Web...


Urwumpe

Not funny anymore
Addon Developer
Donator
Joined
Feb 6, 2008
Messages
37,588
Reaction score
2,312
Points
203
Location
Wolfsburg
Preferred Pronouns
Sire
GUI: http://i.imgur.com/75UM1R8.png (via r/space)

I see several problems with this, starting from the choice of colors (white on gray).

Maybe someone should send Elon a copy of Orbiter with Orb::Connect::Web...

It looks much like a widget interface, so I am pretty sure, a different color theme would be no big deal. Other things there are much worse. Take for example the formal design language of the display: Can you identify by first glance, which element has which type of function? Actually all look the same, no differences. That's pretty bad design.

Also, the layout of the indications is very much looking like a plain static mockup. If you assume that the biggest areas in the interface are the most important information, the display starts to be pretty strange.

And then there are the engineering problems: The meter accuracy of the apogee/perigee indications - pretending higher accuracy than the navigation system actually has. Or a N-W-S coordinate system for the burn data (North-West-South?)

It makes little sense if you think more about it.

But it sure gives an impression, how the spacecraft could eventually look like, including the user interface.

Last edited:

kamaz

Unicorn hunter
Addon Developer
Joined
Mar 31, 2012
Messages
2,298
Reaction score
4
Points
0
They way I look at this is: could I fly in Orbiter using this? Emphatically, NO. There is no attitude information and critical orbital parameters (Inc, LAN, AoP) are missing.


Urwumpe

Not funny anymore
Addon Developer
Donator
Joined
Feb 6, 2008
Messages
37,588
Reaction score
2,312
Points
203
Location
Wolfsburg
Preferred Pronouns
Sire
They way I look at this is: could I fly in Orbiter using this? Emphatically, NO. There is no attitude information and critical orbital parameters (Inc, LAN, AoP) are missing.

Even if you expect this craft to be highly automated, it makes little sense. The actual autopilot mode is a very tiny field nearly lost in the status information on the right. There is no status display for monitoring the activity of the autopilot.

I can work without Inc, LAN and AoP... since plane changes are rarely done. But what is the attitude?

And why is the FDIR state one single global attribute and given as FDIR_INIT? FDIR is Fault Detection, Isolation and Recovery. You have not one global FDIR usually, but FDIRs for every subsystem or even major assembly.

Last edited:

MattBaker

New member
Joined
Jul 9, 2011
Messages
2,750
Reaction score
0
Points
0
Uh, how exactly do I perform a manual emergency reentry if the spacecraft loses power?

"Checklist says tap the...ah dammit!"


Urwumpe

Not funny anymore
Addon Developer
Donator
Joined
Feb 6, 2008
Messages
37,588
Reaction score
2,312
Points
203
Location
Wolfsburg
Preferred Pronouns
Sire
What I just wonder... how do you trim this one? Usually, a capsule has an off-centre CoG for getting the ideal AOA and the RCS is only needed for banking and neutralizing oscillations.

But that would be bad for powered landing - the engines are placed symmetrically. The only way I see by the known components is using slightly varied thrust levels so that the torque is zero - but then, the thrusters are not spaced equally around the spacecraft, but towards the sides (About 40°, 140° , 40°, 140°, instead of 90° between the thrusters). You would have less control in the pitch axis by the SuperDraco thrusters.


kamaz

Unicorn hunter
Addon Developer
Joined
Mar 31, 2012
Messages
2,298
Reaction score
4
Points
0
The actual autopilot mode is a very tiny field nearly lost in the status information on the right.

Wait, there is an autopilot control somewhere?

Oh... You mean Perigee_Raise_Plan under Nitrox reserves?


Urwumpe

Not funny anymore
Addon Developer
Donator
Joined
Feb 6, 2008
Messages
37,588
Reaction score
2,312
Points
203
Location
Wolfsburg
Preferred Pronouns
Sire
Wait, there is an autopilot control somewhere?

Oh... You mean Perigee_Raise_Plan under Nitrox reserves?

Yes, the FC State = Flight Control State.

Which is also approximately below the computer status (But I don't know what the eight squares should mean. CPU cores?)


perseus

Addon Developer
Addon Developer
Joined
May 31, 2008
Messages
316
Reaction score
1
Points
18

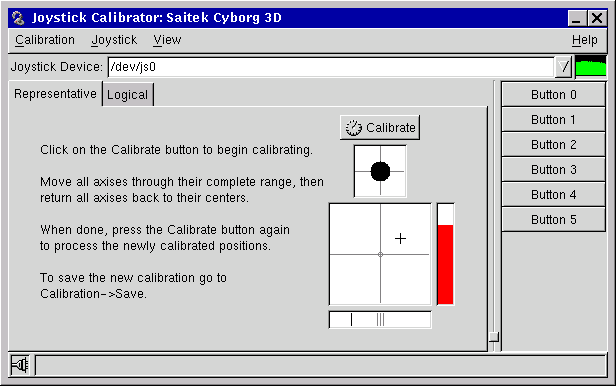

l I imagine configuring and calibrating the joystick to control a manual capsule has an off-centre CoG for getting the ideal AOA and the RCS
:idea:



but this is a joke. I think the system really will be next to this :)



Donamy

Addon Developer
Addon Developer
Donator
Beta Tester
Joined
Oct 16, 2007
Messages
6,904
Reaction score
196
Points
138
Location
Cape
Hey Don. Take a look at the landing legs, the back two are closer together than the front two. Elon makes mention of it during the Q&A session after the reveal.


Could you paraphrase ?


Urwumpe

Not funny anymore
Addon Developer
Donator
Joined
Feb 6, 2008
Messages
37,588
Reaction score
2,312
Points
203
Location
Wolfsburg
Preferred Pronouns
Sire
Could you paraphrase ?


if you look at the photo of the presentation, you can see that the landing gear leg pair towards the hatch is further apart than the pair on the opposite side, forming rather some sort of a tricycle gear than four equally spaced landing gear legs.

The rendering in perseus post also shows this.

I suppose it has something to do with the internal structure of the capsule.


PhantomCruiser

Wanderer
Moderator
Tutorial Publisher
Joined
Jan 23, 2009
Messages
5,600
Reaction score
165
Points
153
Location
Cleveland
He'd mentioned about how it would descend if were using a parachute, landing on the "back" legs first, with the crew more or less head-down. momentum (I suppose) would have the capsule tilt forward onto the remaining two legs. But yes, that picture shows it pretty well.

Not very precise due to the viewing angle, but you can clearly see how close the back legs are to one another. If I can get some time, I'll watch the video again and get a time index.


perseus

Addon Developer
Addon Developer
Joined
May 31, 2008
Messages
316
Reaction score
1
Points
18
Using a small study of perspective, it is clear that the distance of the front landing gear is more 2.6 times wider than the back.
is logical for moreover distributes the weight in 4 surfaces, adapts to any surface like a tripod and are actually two overlapping tripods, if a landing gear breaks.

See image attached.


Attachments

  • dragon2pers.jpg
    111.3 KB · Views: 55
Last edited:
