So far. I haven't been able to reproduce the problem with stock vessels.
I just tried the stock scenario DG docked at ISS

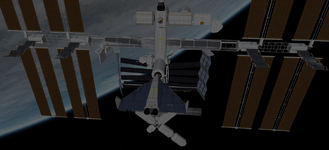

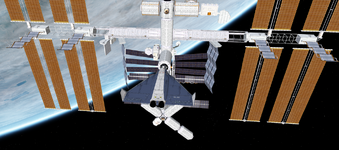

see the attached screen shots


are you getting the same render differences (just vessel markers enabled or disabled) ?


Attachments

  • Capture d'écran 2024-03-26 172039.png
    Capture d'écran 2024-03-26 172039.png
    738.2 KB · Views: 21
  • Capture d'écran 2024-03-26 172025.png
    Capture d'écran 2024-03-26 172025.png
    562.7 KB · Views: 21

jarmonik

Well-known member
Orbiter Contributor
Addon Developer
Beta Tester
Joined
Mar 28, 2008
Messages
2,666
Reaction score
795
Points
128
are you getting the same render differences (just vessel markers enabled or disabled) ?

Not the same but something is wrong in there, I can see a major difference, Thanks. Will look into it...


patio

Member
Joined
Sep 13, 2011
Messages
41
Reaction score
14
Points
23
Not the same but something is wrong in there, I can see a major difference, Thanks. Will look into it...

I just tested to add a separate loop for markers
and it solves all the problems


while (RenderMarkerList.empty() == false) {

RenderVesselMarker(RenderMarkerList.front(), pSketch);
RenderMarkerList.pop_front();
}

so the problem seems to be mixing vessel and vessel markers rendering


Gondos

Well-known member
Joined
Apr 18, 2022
Messages
230
Reaction score
266
Points
78
Location
On my chair
Not sure if it's related to recent changes but I get a crash when loading several scenarios without restarting the launchpad.
To reproduce : Start a scenario then exit to the launchpad, then load another scenario (without restarting Orbiter)
It asserts here in Scene.cpp:3492 :
Code:
    if (Camera.vGravRef == NULL || Camera.vProxy == NULL || Camera.vNear == NULL) {
        assert(false); return;
    }
The 3 Camera.vXXX members are NULL at this point.
Anybody has the same issue?


jarmonik

Well-known member
Orbiter Contributor
Addon Developer
Beta Tester
Joined
Mar 28, 2008
Messages
2,666
Reaction score
795
Points
128
There is a new Pull Request about the SDK sample programs. I created a cmake scripts those can be used to create a Visual Studio solution and project files. Simple documentation included about how to do that. There is a small problem that cmake fails because lacking of debug libraries. Right now the debug libs are replaced by release libs to allow cmake to work.

If we can't upload binaries to GitHub then how do we manage binaries that are not build by GitHubs automated process ? Outside of version control ? Developer FTP access to a folder somewhere ? Maybe cmake-install could pull the binaries from there if not present in destination and assemble a working installation (without planetary textures of course) ?


n72.75

Move slow and try not to break too much.
Orbiter Contributor
Addon Developer
Tutorial Publisher
Donator
Joined
Mar 21, 2008
Messages
2,694
Reaction score
1,352
Points
128
Location
Saco, ME
Website
mwhume.space
Preferred Pronouns
he/him
There is a new Pull Request about the SDK sample programs. I created a cmake scripts those can be used to create a Visual Studio solution and project files. Simple documentation included about how to do that. There is a small problem that cmake fails because lacking of debug libraries. Right now the debug libs are replaced by release libs to allow cmake to work.

If we can't upload binaries to GitHub then how do we manage binaries that are not build by GitHubs automated process ? Outside of version control ? Developer FTP access to a folder somewhere ? Maybe cmake-install could pull the binaries from there if not present in destination and assemble a working installation (without planetary textures of course) ?

GLS had proposed this solution, although I'll admit I don't know enough about cmake to help much.
One idea I had was to have 2 projects for each lib: one only builds Debug and the other Release, and they are always built... not sure if that is possible in cmake.
But apparently there are other ways to make this happen: https://cristianadam.eu/20191012/building-multiple-configurations-with-cmake-in-one-go/

If we can't figure out how to do this automatically in the next week or so, I would recommend the following alternative solution.

  1. When we're ready to release, make a new branch called "Orbiter2024"
  2. Make a single commit to Orbiter2024 adding the debug libs.
  3. Create an official release/tag based on this "Orbiter2024" branch.
  4. If any post-launch bug-fixes need to be made for minor little things:
    1. Make the fix in main.
    2. Merge main into Orbiter2024
    3. Create a new Orbiter2024p1 release
  5. Figure out a better solution before the next release.


jarmonik

Well-known member
Orbiter Contributor
Addon Developer
Beta Tester
Joined
Mar 28, 2008
Messages
2,666
Reaction score
795
Points
128
When trying to build the documentation, this error repeats a lot:
Code:
CMake Error at Src/Module/LuaScript/LuaInterpreter/CMakeLists.txt:44 (add_custom_command):
Error evaluating generator expression:

$<TARGET_FILE:lua::exe>

No target "lua::exe"

What is this syntax supposed to mean $<TARGET_FILE:lua::exe> ?


Gondos

Well-known member
Joined
Apr 18, 2022
Messages
230
Reaction score
266
Points
78
Location
On my chair
When trying to build the documentation, this error repeats a lot:
Code:
CMake Error at Src/Module/LuaScript/LuaInterpreter/CMakeLists.txt:44 (add_custom_command):
Error evaluating generator expression:

$<TARGET_FILE:lua::exe>

No target "lua::exe"

What is this syntax supposed to mean $<TARGET_FILE:lua::exe> ?
Wouldn't it be the lua interpreter (lua.exe)? Looks like the documentation build is trying to use ldoc, which is a lua program.


jarmonik

Well-known member
Orbiter Contributor
Addon Developer
Beta Tester
Joined
Mar 28, 2008
Messages
2,666
Reaction score
795
Points
128
Wouldn't it be the lua interpreter (lua.exe)? Looks like the documentation build is trying to use ldoc, which is a lua program.
Yeah, probably. The error also appears on /Deltaglider/Help/CMakeList.txt and many more... After reverting the root CMakeList.txt to
e7477e610ff74ec5b80092437554f52b31b1f416 (Dated late 2022) it started to work. So, the problem is due to more resent modifications likely 05/02/2023, I don't know why these changes been made so can't comment on it. I sent PM to DarkWanderer, let's see if he got time to look into it.


gattispilot

Addon Developer
Addon Developer
Joined
Oct 17, 2007
Messages
8,689
Reaction score
2,670
Points
203
Location
Dallas, TX

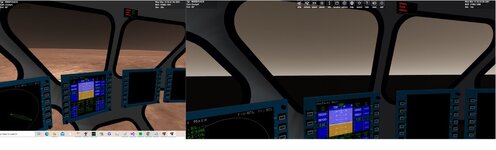

So not sure if the right area. But 2 things. On the MMSEV for 2016. I recompiled for 2024. Using the same textures and meshes. In 2024 the buttons and speed angle is not drawn?

The other weird thing. Is the eagle doesn't show up in the scenario editor?

If it matters both D3D9


Attachments

  • eagle2024A.jpg
    92.3 KB · Views: 13
  • mmsev20162024.jpg
    46.3 KB · Views: 13

jarmonik

Well-known member
Orbiter Contributor
Addon Developer
Beta Tester
Joined
Mar 28, 2008
Messages
2,666
Reaction score
795
Points
128
So not sure if the right area. But 2 things. On the MMSEV for 2016. I recompiled for 2024. Using the same textures and meshes. In 2024 the buttons and speed angle is not drawn?
The other weird thing. Is the eagle doesn't show up in the scenario editor?
If it matters both D3D9

There's been some clean-ups in a Surface API and it may effect to some add-ons if something's done very incorrectly. Is there anything in D3D9ClientLog.html with debug level 2 ?
I have no idea what's going on with the scenario editor. To look into the problems I would need binaries and source code. But nothing here is indicating a problem in the Orbiter.

From D3D9Client development thread:
And Yes, the Sketchpad should be used instead of GetDC. The next-gen Vulkan client wont provide DC support beyond MFD screens.


Mr Martian

Orbinaut/Addon dev/Donator
Addon Developer
Donator
Joined
Jun 6, 2012
Messages
303
Reaction score
85
Points
28
Location
Sydney, Australia, Earth, Sol
Website
www.orbithangar.com
Not sure if this is the best place to ask/mention this, so I apologise in advance, but just wondering if there were any plans for the final release of Orbiter 2024 to include any kind of ‘revamp’ of any of the classic default vessels, like the ShuttleA/ShuttlePB/Wheel station? I only ask because I have made some remodels of some of these craft. My plan was to release these as part of a project I’m currently working on alongside ISV Pegasus v3, but if updated models of some of these classics is something that is appropriate I’m happy to share the meshes earlier. Is there anyone who is overseeing this part of development who would be interested? Happy to DM the mesh and texture files. Again, a bit late to the party with this, but I only just thought of it.


jarmonik

Well-known member
Orbiter Contributor
Addon Developer
Beta Tester
Joined
Mar 28, 2008
Messages
2,666
Reaction score
795
Points
128
Not sure if this is the best place to ask/mention this, so I apologise in advance, but just wondering if there were any plans for the final release of Orbiter 2024 to include any kind of ‘revamp’ of any of the classic default vessels, like the ShuttleA/ShuttlePB/Wheel station? I only ask because I have made some remodels of some of these craft. My plan was to release these as part of a project I’m currently working on alongside ISV Pegasus v3, but if updated models of some of these classics is something that is appropriate I’m happy to share the meshes earlier. Is there anyone who is overseeing this part of development who would be interested? Happy to DM the mesh and texture files. Again, a bit late to the party with this, but I only just thought of it.

Graphics updates are planned for the default vessels after removal of DirectX 7 dependency. Which should happen soon after Orbiter 2024 launch. It would be great the have better meshes and textures. Also the ISS would need an update, there are some high poly ISS add-ons but they are way too demanding for hardware. Medium poly ISS with PBR textures would be really nice. (200k - 400k triangles) The current one is somewhere around 20k - 40k triangles.


misha.physics

Well-known member
Joined
Dec 22, 2021
Messages
394
Reaction score
513
Points
108
Location
Lviv
Preferred Pronouns
he/him
When such updates for the default vessels will be done maybe we could save the legacy models (meshes) and textures of default vessels too, just moving them into a special folder like "Legacy default ships" just to preserfe an oportunity to use them in new Orbiter versions. I mean some kind of retro style (like in some other game remakes), but that's just a suggestion, I don't insist on this :)


Fabri91

Donator
Donator
Joined
Jun 2, 2008
Messages
2,178
Reaction score
233
Points
78
Location
Valmorea
Website
www.fabri91.eu
When such updates for the default vessels will be done maybe we could save the legacy models (meshes) and textures of default vessels too, just moving them into a special folder like "Legacy default ships" just to preserfe an oportunity to use them in new Orbiter versions. I mean some kind of retro style (like in some other game remakes), but that's just a suggestion, I don't insist on this :)
A monument of sorts, like the parts from KSP's very first public version scattered on a nearby airfield or as a statue. 😉


misha.physics

Well-known member
Joined
Dec 22, 2021
Messages
394
Reaction score
513
Points
108
Location
Lviv
Preferred Pronouns
he/him
Yes. Actually I mean the presaving of some authentic Orbiter style (graphics). Honestly I'm a little worried that new graphics might look a bit cartoonishly colorful, but I think I'm wrong and new textures (and meshes) will look just as realistic and serious and even better :D By the way the old textures could be used as one of the skins.


Marg

Active member
Joined
Mar 20, 2008
Messages
483
Reaction score
68
Points
28
I just wanted to post an "idea": in Orbiter 2016 vessels which did not have landing points defined, or incorrectly defined, behaved like they are on the water, going upside down, overturning, floating "submerged"... I had it with B-747 when its landing points were too close too each other (or relative to CoG?).
Maybe it can be used to simulate water?
