Launch report
So we again welcome the Silver Hypergolic Monster(TM) to the steppes of Kazakhstan - flying for the third time in 8 weeks. Nothing special there....
What's on top of it, however, is another story. Briefly speaking, this satellite shouldn't have existed at all. For Eutelsat 3D used to be Eutelsat W3D, sistercraft of W3C and was ordered in 2010
after the loss of another sistercraft W3B shortly after launch on an Ariane 5 rocket in October 2010 due to a huge propellant leak.
Ironically W3C didn't suffered from such a problem when being launched by the Chinese a year later - something that satellite controllers would like to see again tomorrow.
This is the 3rd commercial mission of the year for ILS and the 80th ILS Proton mission since the first commercial flight of the Proton in April 1996.
This is the 7th Eutelsat satellite launched with Proton and the 9th Thales Alenia Space-built satellite launched on Proton.
Launch location:
Baikonur Launch pad no. 200/39 46° 2'23.85"N, 63° 1'54.98"E
Launch dates and times:
[table="head"]{colsp=6}Launch times
Time Zone|
Baikonur / UTC+6
|
Moscow / UTC+4
|
Universal / UTC
|
Washington / EDT
|
Los Angeles / PDT
Launch time (Primary):
|
22:02:00
|
20:02:00
|
16:02:00
|
12:02:00
|
09:02:00
on:
|
May 14, 2013
|
May 14, 2013
|
May 14, 2013
|
May 14, 2013
|
May 14, 2013
{colsp=6}
[highlight][eventTimer]2013-05-14 16:02:00?before|after;%dd% Days %hh% Hours %mm% Minutes %ss% Seconds %c%[/eventTimer] Eutelsat 3D Launch[/highlight]
[/table]
Live Coverage Of The Launch:
PAYLOAD
Anik G1 communication satellite:
Mission Summary
EUTELSAT 3D has been built for Eutelsat by Thales Alenia Space using its established Spacebus 4000 platform.
With a baseline design equipping it to strengthen Eutelsat’s overall in-orbit flexibility and back-up from multiple orbital slots, EUTELSAT 3D will initially be located at the 3° East orbital position to address high-growth video, data, telecom and broadband markets.
Through its configuration of Ku and Ka transponders connected to three footprints, the new satellite will serve customers in Europe, North Africa, the Middle East and Central Asia. A fourth service area in the Ku-band will address markets in sub-Saharan Africa.
EUTELSAT 3D will operate at 3° East until the deployment of the EUTELSAT 3B satellite to this position in 2014 to provide spectrum growth and high levels of operational flexibility in C, Ku and Ka bands. It will subsequently continue service at 7° East.
[table="head"]{colsp=2}Summary
Parameter|
Value
Working Orbit:
|
GEO
Orbital Location:
|
3°/7° East
Coverage:
|
Europe, North Africa, Middle East, Central Asia
ApA at separation:
|
35696 km
PeA at separation:
|
6775 km
Inc at separation:
|
17.5°
[/table]
[table="head"]Characteristics|
Anik G1
Customer:
|
Prime contractor:
|
Platform:
|
Mass at Separation:
|
Dry Mass:
|
Stabilization:
|
Dimensions (stowed):
|
Batteries:
|
Payload:
|
- 53 Ku-band transponders
- 3 Ka-band transponders
Life time:
|
Coverage:
|
|
[/table]
Launch Vehicle:
[table="head"]{colsp=2}Characteristics
|[table="head"]{colsp=2}
Proton-M / Briz-M
Prime contractor:
|
GRAU Index:
|
Height:
| 58.2 m with upper stage and payload fairing
Diameter:
| max 7.4 m
Liftoff mass:
| 705 metric tonnes
Payload mass:
| ~22 tonnes at LEO
1st stage:
|
- 6 X RD-275 engines
- Empty 30.6 tonnes
- Propellants 419.41 tonnes (UDMH and NTO)
- Thrust in vacuum 1069.8 tonnes of force
- Thrust at sea level 971.4 tonnes of force
2nd stage:
|
- 1 X RD-0211 engine 3 X RD-0210 engines
- Empty 11.4 tonnes
- Propellants 156.113 tonnes (UDMH and NTO)
- Thrust in vacuum 237.4 tonnes of force
3rd stage:
|
- 1 X RD-0213 engine & 1 X RD-0214 vernier engine
- Empty 3.7 tonnes
- Propellants 46.562 tonnes (UDMH and NTO)
- Thrust in vacuum 59.36 (core) + 3.15 (vernier) tonnes of force
Upper Stage:
|
- GRAU Index: 14S43
- Common Name: Briz-M
- Designer & Manufacturer: Khrunichev Space Centre
- Dimensions: Length 2.654 m, Diameter 4 m
- Empty Mass 2.2 tonnes
- Propellants 6 660 kg UDMH + 13 260 kg N2O4
- Flight time: no less than 24 hours
- Main Engine: 1 X 14D30
- Thrust in vacuum 2.0 tonnes of force
- ISP 328.6 s
- Main engine restarts: up to 8 times
- Precision Manoeuvering Engines: 4 X 11D458
- Thrust in vacuum 400 N each
- ISP 252 s
- RCS Engines: 12 X 17D58E
- Thrust in vacuum 13.3 N each
- ISP 274 s
Payload Fairing:
|
- Diameter 4.35 m
- Length 11.6 m
[/table]
[/table]
The vehicle's
reliability statistics according to
http://www.spacelaunchreport.com/log2013.html#rate:
Code:
================================================================
Vehicle Successes/Tries Realzd Pred Consc. Last Dates
Rate Rate* Succes Fail
================================================================
Proton-M/Briz-M 58 64 .91 .89 2 12/08/12 2001-

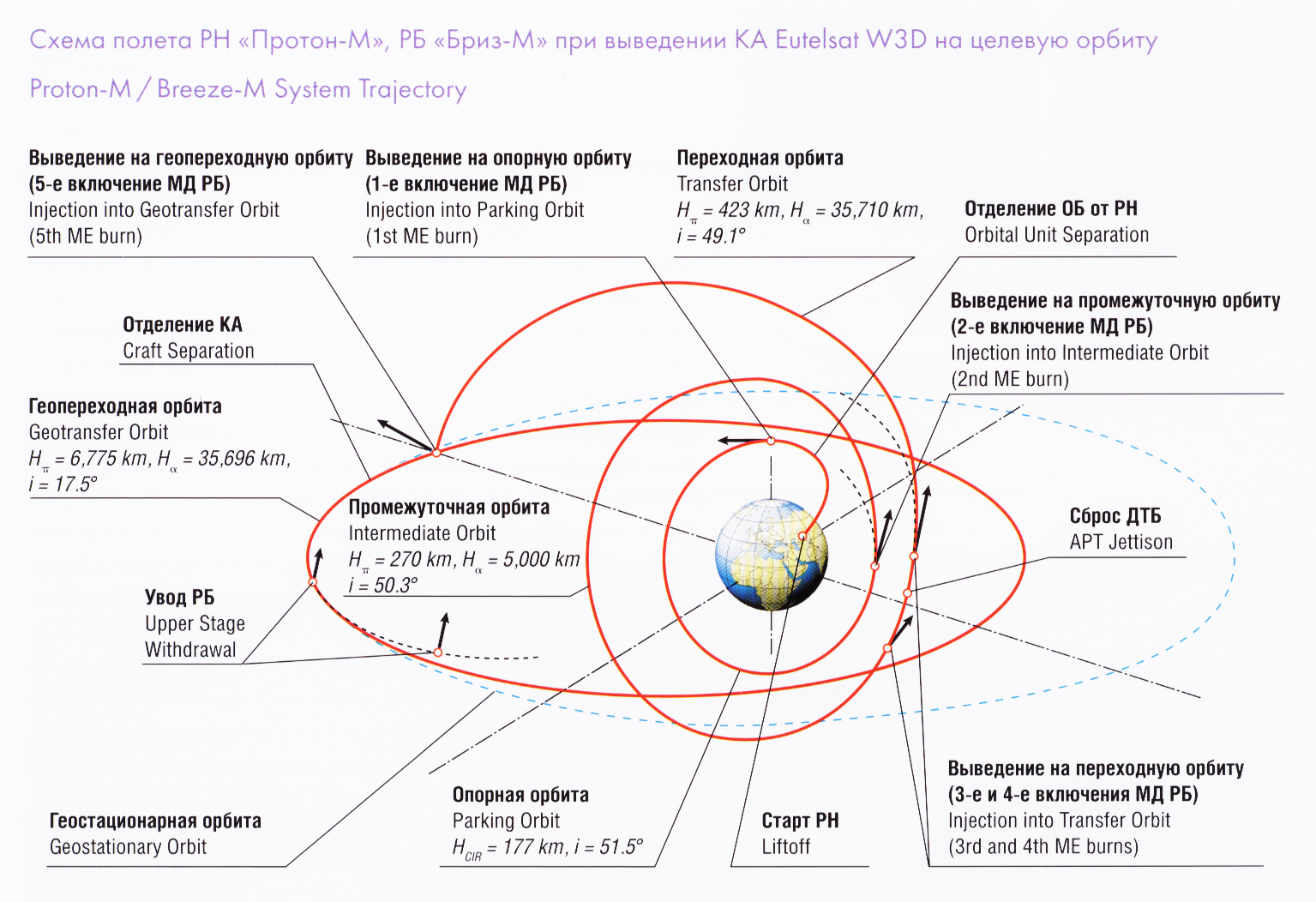

Eutelsat 3D Ascent Profile

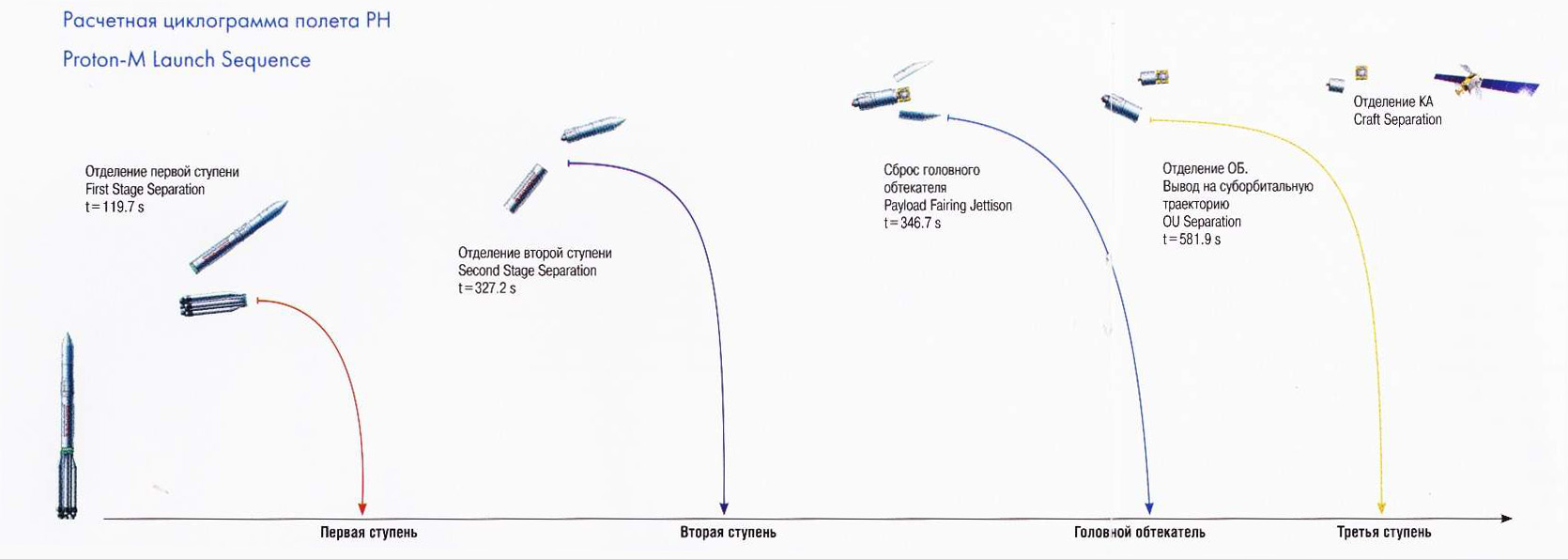

The Proton-M first three stages place the orbital unit (OU), which consists of a Breeze-M upper stage, adapter system and Eutelsat 3D, into a 51.5° inclination suborbital trajectory.
Proton-M powered flight lasts 582 seconds. The OU powered flight begins at the moment of the third stage separation.

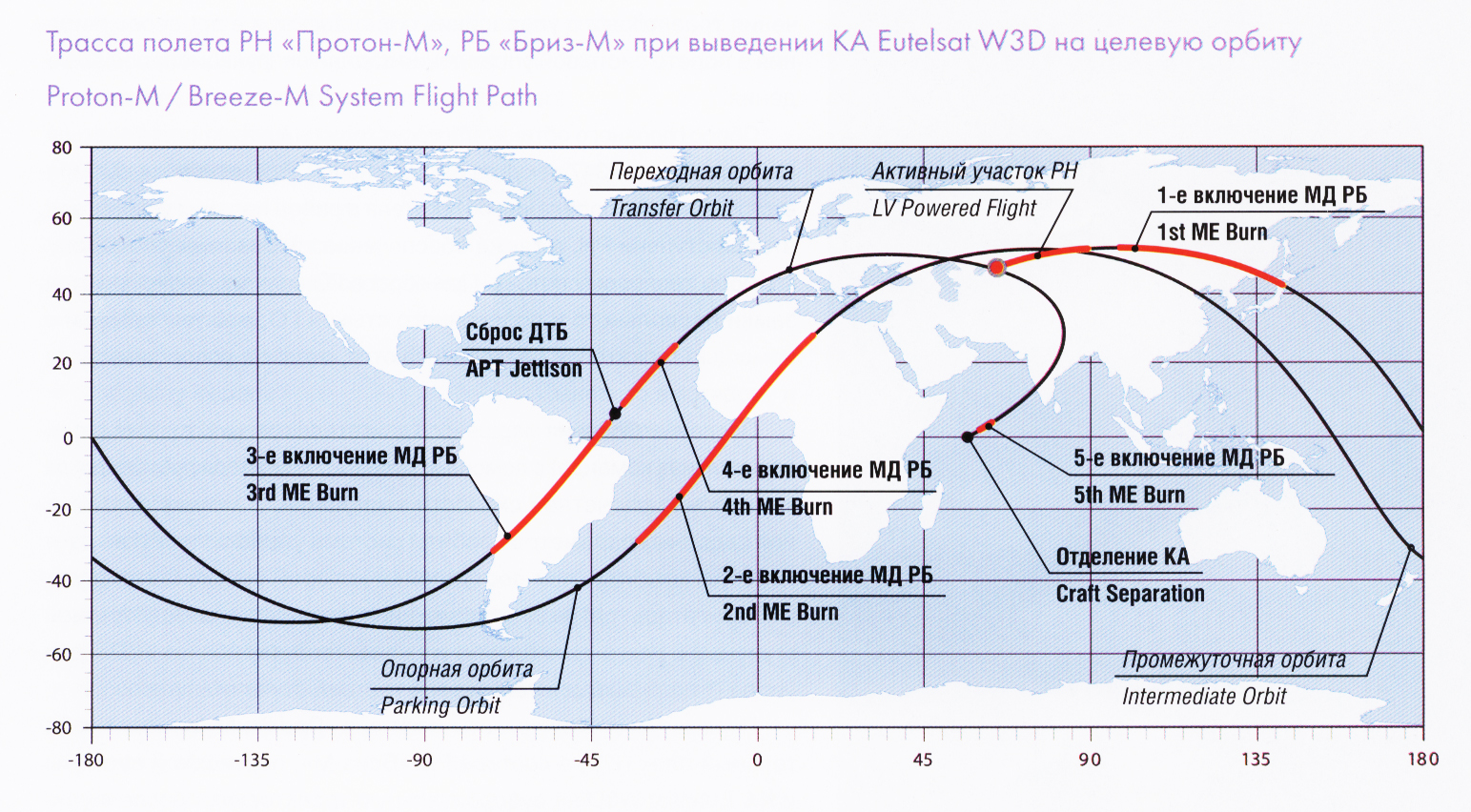

Immediately after the separation of the third stage booster, the Breeze-M stability engines start, damping the angular velocities of the third stage separation and then providing orbital unit orientation and stability during coast flight along a suborbital trajectory to await the first burn. The upper stage follows a five-burn injection profile.

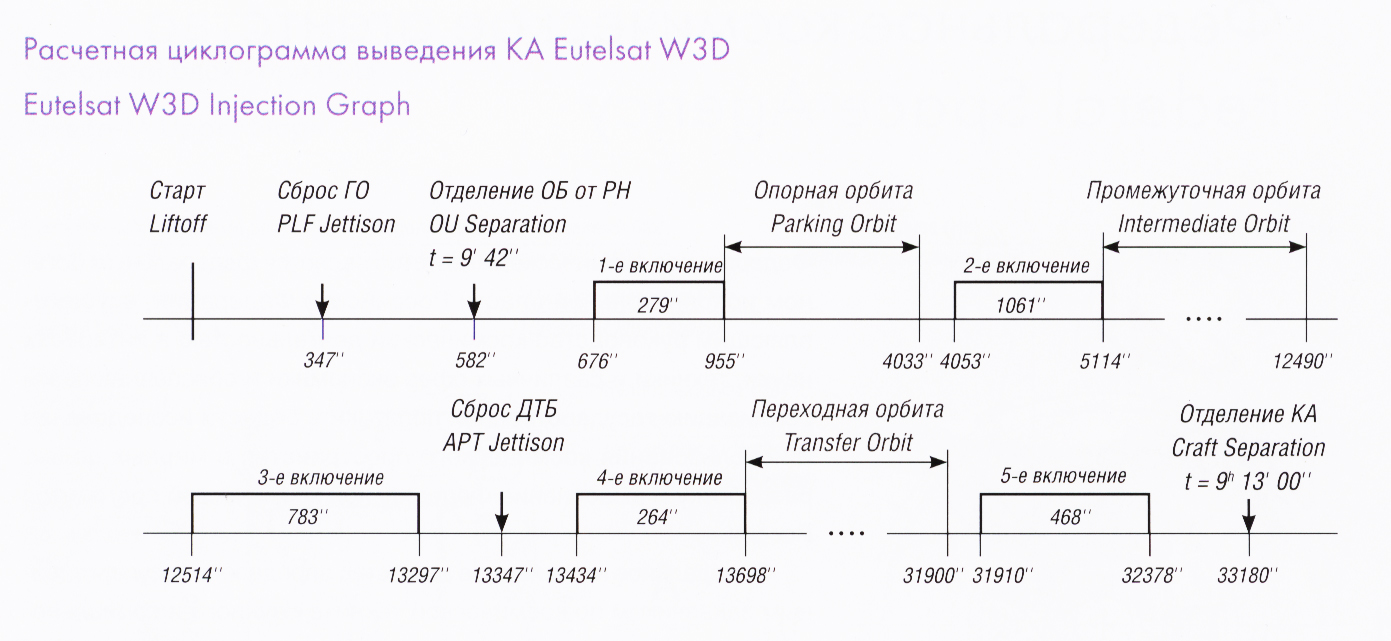

Eutelsat 3D Ascent Timeline
[TABLE="head"]Event|Time rel lift-off|Time UTC|Comment
Ignition Start Sequence|-00:00:02.5|16:01:57.5|
Stage 1 Ignition (40% thrust)|-00:00:01.75|16:01:58.25|
Command Stage 1 (100% thrust)|-00:00:00.9|16:01:59.1|
Maximum Dynamic Pressure|00:01:02|16:03:02|
1st/2nd Stage Separation|00:02:00|16:04:00|
2nd/3rd Stage Separation|00:05:27|16:07:27|
Payload Fairing Separation|00:05:47|16:07:47|
3rd Stage/Breeze M Separation|00:09:42|16:11:42|
1st Burn Ignition|00:11:16|16:13:16|
1st Burn Shutdown|00:15:55|16:17:55|1st Burn's Duration 00:04:39
2nd Burn Ignition|01:07:33|17:09:33|
2nd Burn Shutdown|01:25:14|17:27:14|2nd Burn's Duration 00:17:41
3rd Burn Ignition|03:28:34|19:30:34|
3rd Burn Shutdown|03:41:37|19:43:37|3rd Burn's Duration 00:13:03
APT Jettison|03:42:27|19:44:27|
4th Burn Ignition|03:43:54|19:45:54|
4th Burn Shutdown|03:48:18|19:50:18|4th Burn's Duration 00:04:24
5th Burn Ignition|08:51:50|00:53:50|
5th Burn Shutdown|08:59:38|01:01:38|5th Burn's Duration 00:07:48
Spacecraft Separation|09:13:00|01:15:00|
[/TABLE]
Weather forecast for Baikonur, Kazakhstan on May 14, 2013 (10 p.m.)
Partly cloudy in the evening, then clear. Low of 13C. Breezy. Winds from the ENE at 20 to 25 km/h.
Time|Temps|Dew Point|Relative Humidity|Precip|Snow|Cloud cover|Pressure|Wind|Weather
11 PM|21°C|-8°C|13%|0%|0%|0%|1014 hPa|21 km/h ENE|
Clear
References
http://www.federalspace.ru
http://tvroscosmos.ru
http://www.khrunichev.ru
http://www.ilslaunch.com
http://tihiy.fromru.com/Rn/RN_Proton.htm
http://space.skyrocket.de/doc_sdat/eutelsat-w3b.htm
http://www.eutelsat.com/en/satellites/future-satellites/launch-schedule/EUTELSAT-3D.html
http://www.flickr.com/photos/eutelsat_communications/
http://www.tsenki.com
http://forum.nasaspaceflight.com
http://www.novosti-kosmonavtiki.ru
http://www.spacelaunchreport.com
http://english.wunderground.com/cgi-bin/findweather/getForecast?query=44.84999847,65.50000000
