Skylab 1973 rebuild

[gattispilot]

Here is the latest. It has 2 eva guys. On Skylab the operation are split on the pop up. Eva exit, foot restraints in the Fixed Shroud are controlled there. Activies on the ATM on ATM or EVA

Things still working on is better attachments for the boom and eva on the ATM.

On the eva guys they move along an attachment point. if you attach to the foot restraint to move again retether. I can make them free flow.


On the launch I just adjusted the locations and time in MS2015.



[gattispilot]

Sounds like trying to add a tether might be to much work . It would be nice to have a tether EVA guy as was done with the ISS but be able to make him a free floater as well

Not sure what you are talking about. The ISS with Questairlock has EVA. Both ISS_HD and Skylab have floating guys



[gattispilot]

Needs to make a mesh adjustment for the BOOM devices.

On them. I can make it attach a film cassette vessel (white box) and carry the film cassette to the top.

Maybe have the film cassette in the holding? But then Do I need to have skylab load the film? Just means more attachment.

On the Can the side hatches don't open I can do that.



[gattispilot]

relooking at the booms:
2.5.7.4.7 Extendible Boom To transfer the ATM film between the FAS workstation and the center or sun end workstation, a remotely controlled, motorized extendible boom is employed to transport the film to the film receiving points near the center and sun end workstations (figure 2.5.7-3). Three extendible booms are utilized: (1) a center extendible boom to transport the ATM film to a target point immediately adjacent to the center workstation; (2) a sun end extendible boom to transport the film to the transfer workstation where the film is removed from the boom by the crewman and placed on the sun end workstation; and (3) a spare extendible boom which serves as a replacement for the center or sun end extendible boom. The booms extend and retract through the action of electrically driven reels, which "pay-out" or "roll-back" two ribbons. The ribbons are stored in the flattened state on the reels. When an extendible boom switch is placed in the EXTEND pos iti on, the ree 1 s "pay-ou t" the fl at ri bbon through the b'oom housi ng . The pre-load built into the ribbon causes the ribbon to curl over into a cross section resembling a "double barrel shotgun". A boom hook is mounted on the end of the ribbon boom and restrains the ATM film as it is being transported. The boom hook is hinged at its base to permit "out-of-the-way" stowage when not in use. The center extendible boom and the sun end extendible boom are powered from switches located on panel 321 adjacent to the EVA hatch opening in the EVA bay. This panel is easily accessible to the crewman located in the FAS workstation. The film is readily loaded or unloaded on the center or sun end extendible boom while the crewman is positioned in the FAS workstation. The center extendible boom and the sun end extendible boom are supplied AM buses 1 and 2 power for operation through a zero-G electrical receptacle. However, for each extendible boom, one bus connector is connected to the boom circuitry while the other bus connector is stowed on a dummy receptacle located on the extendible boom mounting case (figure 2.5.7-4). In this way, the sun end extendible boom is normally connected to AM bus 1 and the center extendible boom to AM bus 2.

MAybe this?



[moonheart]

Really nice work here!


Is there a way to raise the visor on the EVA guy?



[gattispilot]

Really nice work here!


Is there a way to raise the visor on the EVA guy?

Thanks. The gold visor is on the pop out. Ctrl and space. I think w/s sideshield 1/2 center shield 3/4 center shield flap



[gattispilot]

It looks like those boom are operated remotely. Could be worked manually.

So would it make sense to aim the boom at the Sun end and Transfer and place them somewhere?

You could have them without the hooks. and attach. or press a key and the hook is seen. I am not sure what is attached to end. Maybe a tray tree receptible?
one drawing has them on top of the struts?

It looks like covered structures? The PDF attached as got clear images



[TheShuttleExperience]

The problem is just that the ATM handbook is still unpublished.

There is this one available:

https://ntrs.nasa.gov/api/citations/19740023221/downloads/19740023221.pdf

MSFC Skylab Apollo Telescope Mount - NASA Technical Reports Server (NTRS)

A technical history and management critique of the Skylab Apollo Telescope Mount (ATM) from initial conception through the design, manufacturing, testing and prelaunch phases is presented. A mission performance summary provides a general overview of the ATM's achievements in relationship to its...

ntrs.nasa.gov

Maybe it's a re-post. But just in case, more stuff...

Airlock Module Vol. 1 & 2:

https://ntrs.nasa.gov/api/citations/19740018208/downloads/19740018208.pdf

MSFC Skylab airlock module, volume 1 - NASA Technical Reports Server (NTRS)

The history and development of the Skylab Airlock Module and Payload Shroud is presented from initial concept through final design. A summary is given of the Airlock features and systems. System design and performance are presented for the Spent Stage Experiment Support Module, structure and...

ntrs.nasa.gov

https://ntrs.nasa.gov/api/citations/19740018225/downloads/19740018225.pdf

MSFC Skylab airlock module, volume 2 - NASA Technical Reports Server (NTRS)

System design and performance of the Skylab Airlock Module and Payload Shroud are presented for the communication and caution and warning systems. Crew station and storage, crew trainers, experiments, ground support equipment, and system support activities are also reviewed. Other areas...

ntrs.nasa.gov

Multiple Docking Adapter Vol. 1 & 2:

https://ntrs.nasa.gov/api/citations/19740018215/downloads/19740018215.pdf

https://ntrs.nasa.gov/citations/19740018215

https://ntrs.nasa.gov/api/citations/19740018216/downloads/19740018216.pdf

MSFC Skylab Multiple Docking Adapter, Volume 2 - NASA Technical Reports Server (NTRS)

For abstract, see N74-26328.

ntrs.nasa.gov

Orbital Workshop Vol. 1-5:

https://ntrs.nasa.gov/api/citations/19740020215/downloads/19740020215.pdf

MSFC Skylab Orbital Workshop, volume 1 - NASA Technical Reports Server (NTRS)

The technical aspects of the Skylab-Orbital Workshop are discussed. Original concepts, goals, design philosophy, hardware, and testing are reported. The final flight configuration, overall test program, and mission performance are analyzed. The systems which are examined are: (1) the structural...

ntrs.nasa.gov

https://ntrs.nasa.gov/api/citations/19740020216/downloads/19740020216.pdf

MSFC Skylab Orbital Workshop, volume 2 - NASA Technical Reports Server (NTRS)

The design and development of the Skylab Orbital Workshop are discussed. The subjects considered are: (1) thrust attitude control system, (2) solar array system, (3) electrical power distribution system, (4) communication and data acquisition system, (5) illumination system, and (6) caution and...

ntrs.nasa.gov

https://ntrs.nasa.gov/api/citations/19740020217/downloads/19740020217.pdf

MSFC Skylab Orbital Workshop, volume 3 - NASA Technical Reports Server (NTRS)

The waste management system for the Skylab Orbital Workshop is discussed. The general requirements of the system are presented. Illustrations of the components of the system are provided. Data concerning maximum expected performance capabilities are developed. The results of performance tests on...

ntrs.nasa.gov

https://ntrs.nasa.gov/api/citations/19740020218/downloads/19740020218.pdf

MSFC Skylab Orbital Workshop, volume 4 - NASA Technical Reports Server (NTRS)

The design and development of specific systems on the Skylab Orbital Laboratory are discussed. The subjects considered are: (1) pressure garment conditioning system, (2) stowage system, (3) ground support equipment systems, and (4) marking systems illustrations of the system components are...

ntrs.nasa.gov

https://ntrs.nasa.gov/api/citations/19740020219/downloads/19740020219.pdf

MSFC Skylab Orbital Workshop, volume 5 - NASA Technical Reports Server (NTRS)

The various programs involved in the development of the Skylab Orbital Workshop are discussed. The subjects considered include the following: (1) reliability program, (2) system safety program, (3) testing program, (4) engineering program management, (5) mission operations support, and (6)...

ntrs.nasa.gov

Skylab - Lessons Learned:

https://ntrs.nasa.gov/api/citations/19740022187/downloads/19740022187.pdf

MSFC Skylab lessons learned - NASA Technical Reports Server (NTRS)

Key lessons learned during the Skylab Program that could have impact on on-going and future programs are presented. They present early and sometimes subjective opinions; however, they give insights into key areas of concern. These experiences from a complex space program management and space...

ntrs.nasa.gov

Skylab - A Chronology:

https://ntrs.nasa.gov/api/citations/19780017172/downloads/19780017172.pdf

Skylab: A chronology - NASA Technical Reports Server (NTRS)

The Skylab Program was specifically designed to conduct a series of experiments from beyond the earth's atmosphere. Since the number and types of experiments conducted during the operational phase of Skylab were constantly changing, rather than encumber the body of the chronology with these...

ntrs.nasa.gov



[TheShuttleExperience]

I have not tried it. But it should. If it has the clearance.

Because the docks in skylab are set for apollo craft it would not align. Here is the Atlantis default shuttle. I think with the MIR it needed an docking adapter

Ah, yeah, I was wrongheaded. It needs another docking module due to the ATM solar arrays I think.



[gattispilot]

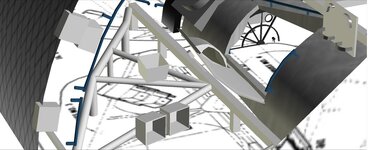

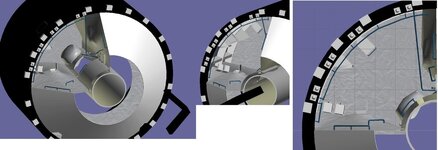

New EVA bay.

Looking at interior of MDA.

Any issues?



[gattispilot]

redid the BOOM device. I added one to the skylab mesh as it is a spare and just eye candy and not part useable. But 2 of them will be.

Going to have a new mesh for the VC and external.



[gattispilot]

Added new handrails. Using Vesselbuilder I can adjust attachment point live. I know the Boom switch looks small. It matches his hand.



[gattispilot]

Now the guy can extend the boom

Not sure what else. I can make it simple and put a storage box on the end of the hook. so visually it looks nice.
Harder is an attachment point. But what to attach??

I need to make the boom device larger



[gattispilot]

Here the guy is operating the Boom device and extended a basket to the Sunshield.



[gattispilot]

Launch using AMSO and MS2015

I will need help on the orbit scenarios for the other Skylab flights.

Also latest

On the boom They have a pop up window Ctrl and space. G shows the basket



[gattispilot]

Here is the latest zip..

Not sure why the zip is not showing up?



[PhantomCruiser]

Yeah, that's weird.
Great work with Skylab



[moonheart]

Yes - the zip file doesn't appear. Could you try a repost?



[gattispilot]

Updated the zip.
Not sure why it is not loading. But it is here:

skylabnew8.18.zip - Shared with pCloud

Keep, share and access your files whenever you need from wherever you are. Create a free pCloud account and make your life easier.

u.pcloud.link

Updated the scn to the time of eva for Skylab 2.

On the EVA you need to have the eva movement box closed before entering Skylab.

On the FS box is a button marked tether. if the guy is attached to something else. He can't move around. When this is pressed he is reattached to where the attachment was before leaving.

I am not sure what the orientation/orbit of skylab should be?



[gattispilot]

I got the AMSO to launch. Not sure how to close the antenna?
