You should lower the flame blast deflector to make room for the service cabin.
Sorry for the low resolution. Credit goes to Anatoly Zak from Russian Space Web.


Attachments

  • baikonur_r7_1_main_1.jpg
    70.2 KB · Views: 4
Last edited:
Joined
Jun 13, 2021
Messages
28
Reaction score
16
Points
18
Location
Москова, СССР

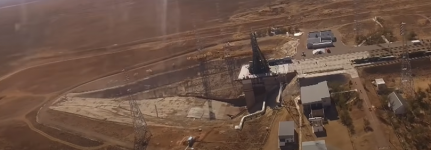

Nice work on the launch pad by the way. The trench just needs to be a bit wider and deeper. From the top of the launching table to the bottom (Where the two water basin/trenches are located) is 150 feet or ~44 meters deep Here is a good reference for the shape (taken from aerial helicopter view):
Image source: Ruptly

Last edited:
Joined
Jun 13, 2021
Messages
28
Reaction score
16
Points
18
Location
Москова, СССР
Separation sequence timing goes like this:
1) LES tower jеttison (1:53)
2) Booster jеttison and Korolev cross (1:58)
3) Faring jеttison (2:34
4) Blok I ignites (4:30)
5) Blok A jettison (4:35)
6) three orange engine panels jettison (4:37)
7) Blok I jettison (8:52)
