Project Mir station complex / UR-500 family

[Astronautical achievement]

You are gonna want to rotate the Proton by 60 degrees so that it is properly aligned with the Launch Pad Hexagon's umbilical lines and flame deflectors



[MaxBuzz]

Spektr is like a spider



[MaxBuzz]

Zarya



[MaxBuzz]

Nauka



[Astronautical achievement]

your gonna want to rotate just the 1st stage by 60 degrees to the right, so that the green "pedals" of the launch pad hexagon line up with the areas in-between the engine and oxidizer tanks (that's where the fueling and electrical cables go)



[MaxBuzz]

your gonna want to rotate just the 1st stage by 60 degrees to the right, so that the green "pedals" of the launch pad hexagon line up with the areas in-between the engine and oxidizer tanks (that's where the fueling and electrical cables go)

should have rotated 30 degrees

Zvezda



[Astronautical achievement]

Why is the russian flag upsidown?



[Gargantua2024]

The Pizza Hut logo is also missing on Zvezda's Proton rocket, but that being said I guess it's OK if it's not going to be included



[N_Molson]

Why is the russian flag upsidown?

Looks like an UV mirror texture issue.



[MaxBuzz]

Kvant-1 FSM orbital tug (quickly redone TKS)



[MaxBuzz]

Kvant-1 and a shortened Proton



[MaxBuzz]

Salyut 6



[MaxBuzz]

Salyut 7



[MaxBuzz]

Proton and booster block DM



[MaxBuzz]

Briz (rocket stage)



[GLS]

I think the DOS modules (Salyut, Mir and Zvezda) had fairings only on the forward ends, leaving the aft cylindrical section exposed during launch.



[MaxBuzz]

I think the DOS modules (Salyut, Mir and Zvezda) had fairings only on the forward ends, leaving the aft cylindrical section exposed during launch.

yes, but I left it for later



[Gargantua2024]

I think the DOS modules (Salyut, Mir and Zvezda) had fairings only on the forward ends, leaving the aft cylindrical section exposed during launch.

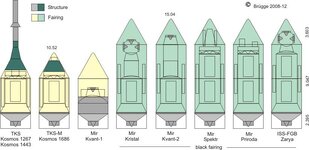

Yep, for DOS modules, they do only cover the top portions. These are what I've used as references when I compiled 4throck's Soyuz 7K addon for O2016 a few years ago



[MaxBuzz]

Yep, for DOS modules, they do only cover the top portions. These are what I've used as references when I compiled 4throck's Soyuz 7K addon for O2016 a few years ago

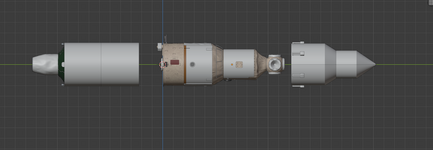

like this



[MaxBuzz]
