New Release D3D9Client Development

[misha.physics]

I have no plans to add support for shadows for local lights. It would have heavy performance impact and there are some other problems with the implementation as well. There are more important things to do.

Thanks, of course. Maybe it just will be possible to return to this in the distant future. By the way, maybe it will be a good idea to limit the visibility range of the local light, and then shadows won't impact performance as much. Or some other ways. These local lights look nice (just the local light shining through objects is quite noticeable).



[jarmonik]

Here's a development patch (only for developers) for a ray-traced VC textures. It's been a while since I last time build a binary patch so I hope I didn't forget anything. Orbiter can be downloaded from the GitHub page by clicking a small "tag" icon next to "branches" and then select "downloads". This patch is x86 build



[DaveS]

Here's a development patch (only for developers) for a ray-traced VC textures. It's been a while since I last time build a binary patch so I hope I didn't forget anything. Orbiter can be downloaded from the GitHub page by clicking a small "tag" icon next to "branches" and then select "downloads". This patch is x86 build

It seems like you forgot a file:

**** Orbiter.log
000000.000: Build Feb  4 2024 [v.602931718]
000000.007: Timer precision: 1e-07 sec
000000.146: Found 0 joystick(s)
000000.382: ---------------------------------------------------------------
000000.386: BaseDir    : E:\OpenOrbiter\
000000.391: ConfigDir  : E:\OpenOrbiter\Config\
000000.398: MeshDir    : E:\OpenOrbiter\Meshes\
000000.403: TextureDir : E:\OpenOrbiter\Textures\
000000.407: HightexDir : E:\OpenOrbiter\Textures2\
000000.412: ScenarioDir: E:\OpenOrbiter\Scenarios\
000000.417: ---------------------------------------------------------------
000000.422: D3D9 DLLs  : C:\WINDOWS\SYSTEM32\d3d9.dll [v 10.0.19041.3636]
000000.427:            : C:\WINDOWS\SYSTEM32\d3dx9_43.dll [v 9.29.952.3111]
000000.432: ---------------------------------------------------------------
000000.437: Module D3D9Client.dll ........ [Build 240204, API 240204]
000000.486: [D3D9] Native Interface
000000.491: [D3D9] DirectX9 Created...
000000.496: [D3D9] Initialize VideoTab...
000000.614: Loading module D3D9Client
000000.619: Module TerrainToolBox.dll .... [Build 231126, API 231126]
000000.625: Loading module TerrainToolBox
000000.632: Module TerrainToolKit.dll .... [Build 240204, API 240204]
000000.637: Loading module TerrainToolKit
000000.643: Module AtlantisConfig.dll .... [Build 240204, API 240204]
000000.648: Loading module AtlantisConfig (legacy interface)
000000.653: Module AtmConfig.dll ......... [Build 240204, API 240204]
000000.659: Loading module AtmConfig (legacy interface)
000000.664: Module DGConfigurator.dll .... [Build 240204, API 240204]
000000.669: Loading module DGConfigurator (legacy interface)
000006.364:
000006.369: **** Creating simulation session
000006.379: [D3D9] === clbkCreateRenderWindow ===
000006.392: D3D9: [DirectX 9 Initialized]
000006.404: D3D9: 3D-Adapter.............. : NVIDIA GeForce RTX 2070 SUPER
000006.412: D3D9: MaxTextureWidth......... : 16384
000006.418: D3D9: MaxTextureHeight........ : 16384
000006.425: D3D9: MaxTextureRepeat........ : 8192
000006.433: D3D9: VolTexAddressCaps....... : 0x3F
000006.439: D3D9: NumSimultaneousRTs...... : 4
000006.445: D3D9: VertexDeclCaps.......... : 0x30F
000006.451: D3D9: MiscCaps................ : 0x2FCEF2
000006.456: D3D9: Separate AlphaBlend..... : Yes
000006.462: D3D9: Shadow Mapping.......... : Yes
000006.467: D3D9: D3DFMT_A16B16G16R16F.... : Yes
000006.473: D3D9: Vertex_A16B16G16R16F.... : Yes
000006.479: D3D9: Vertex_A32B32G32R32F.... : Yes
000006.484: D3D9: Vertex_R16F............. : Yes
000006.490: D3D9: Vertex_R32F............. : Yes
000006.496: D3D9: D3DFMT_A32B32G32R32F.... : Yes
000006.503: D3D9: D3DFMT_D32F_LOCKABLE.... : Yes
000006.509: D3D9: D3DFMT_A2R10G10B10...... : Yes
000006.515: D3D9: D3DFMT_L8............... : Yes
000006.520: D3D9: D3DDTCAPS_DEC3N......... : No
000006.526: D3D9: D3DDTCAPS_FLOAT16_2..... : Yes
000006.532: D3D9: D3DDTCAPS_FLOAT16_4..... : Yes
000006.537: D3D9: Runs under WINE......... : No
000006.544: D3D9: D3D9Build Date.......... : 0
000006.616: D3D9: Available Texture Memory : 4069 MB
000006.623: D3D9: [3DDevice Initialized]
000009.630: Loaded 41057 records from star database
000009.794: ============================ ERROR: ===========================
000009.800: Mesh not found: .\Meshes\D3D9Cube.msh
000009.806: [MeshManager::LoadMesh | C:\Software\OrbiterRepositories\VCRaytrace\Src\Orbiter\Mesh.cpp | 1328]
000009.812: ===============================================================
000009.817: D3D9ERROR: D3D9Client::clbkStoreMeshPersistent(D3D9Cube) hMesh is NULL
000009.823: Failed to open D3D9Cube.msh



[DaveS]

Oh and another thing, please exclude any root level .cfg files. I was going mad trying figure out why my planet textures weren't loading anymore and I have now found out it was because you included your Orbiter_NG.cfg file in the BakedVC_Testing.zip file which overwrote my Orbiter_NG.cfg file which in turn caused the PlanetTex file path to be incorrect.



[jarmonik]

Ok, thanks for the information. I have added the missing file and the *.cfg are no longer overwritten in root folder.



[gattispilot]

IS there anyway to fix the areas around the poles on the Moon? I don't know if we could flatten them and add a mesh of craters,.....



[N_Molson]

IS there anyway to fix the areas around the poles on the Moon? I don't know if we could flatten them and add a mesh of craters,.....

AFAIK it isn't easy. More a geometry issue with the "UV sphere", the shape from which the planets/moons are rendered. As you can see the "squares" are the largest near the equator and the smallest near the poles. Also, the shape near the equator is quite close from a rectangle, but it is less an less true as you look North/South. It means that the resolution and "precision" of the textures near the poles are well... crappy. Elevation data is read by the graphic engine as a white/black texture (heightmap) applied to the same sphere.

Note that you have the exact same problem in KSP, it isn't specific to Orbiter.



[Donamy]

Could you texture the poles separately from above and meld them ?



[n72.75]

With UV spheres you run out of precision near the poles.



There is another way to map topologies:

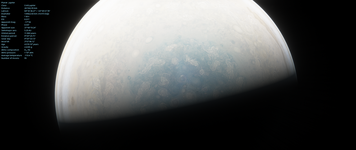

Which is how space engine can do this on Jupiter's south pole


This wouldn't technically be impossible to implant, but it's probably very near the top of "Difficult Problems to Solve" list....



[DaveS]

Trying to use Terrain Toolkit in this D3D9 package, causes a CTD. This is my D3D9 Advanced Settings:



[misha.physics]

It seems like you're trying to use this tool with OpenOrbiter build, but it has its own integrated TerrainToolKit.



[DaveS]

It seems like you're trying to use this tool with OpenOrbiter build, but it has its own integrated TerrainToolKit.

So how do I access the built it one?



[misha.physics]

Just activate it on Module tab. Then press Ctrl+F4 during simulation, and select the tool.



[DaveS]

Just activate it on Module tab. Then press Ctrl+F4 during simulation, and select the tool.

Tried that and it still CTDs. This is with a clean install of OO.



[misha.physics]

That's something interesting with your Orbiter version. Your screenshot says it's v240204. I've just downloaded the latest Orbiter build x86 (zip-file), and it's v240201. Maybe you use some other version (or x64 build), honestly I don't know.



[DaveS]

That's something interesting with your Orbiter version. Your screenshot says it's v240204. I've just downloaded the latest Orbiter build x32, and it's v240201. Maybe you use some other version (or x64 build), honestly I don't know.

The screenshot was with the Baked_VC dev package jarmonik posted earlier. Now, it is build 240201, the x86 version.



[misha.physics]

Oh, then I'm sorry, I haven't tried that version. (I may only suppose your Orbiter.log will be useful for someone to help you.)



[DaveS]

Orbiter log after the CTD:

**** Orbiter.log
